[ OH-MG type 1 - 8B ]
The shaft seal is a single mechanical seal. It is a versatile, high-performance gear pump of the outer shaft bearing type. It is suitable for high-pressure transportation of liquids without lubrication, or liquids that are abrasive or corrosive. The pump is widely used for such materials as waste oil/waste liquids, liquids containing slurry, chemical extinguisher undiluted solution, and flocculants.

OH-MG type geared motor direct drive OH-MG pump main body
OH-MG type geared motor direct drive OH-MG pump main body
[1] [2] [1] [2] [3]

[ OH-G type 3/4 - 8B ]
The shaft seal is a gland packing type.

[ OH-S2G type 1 - 8B ]
The shaft seal is a Teflon oil seal, so the gear pump helps prevent hardening of the solution in the outer shaft bearing OH type. It is widely used for resins, etc.

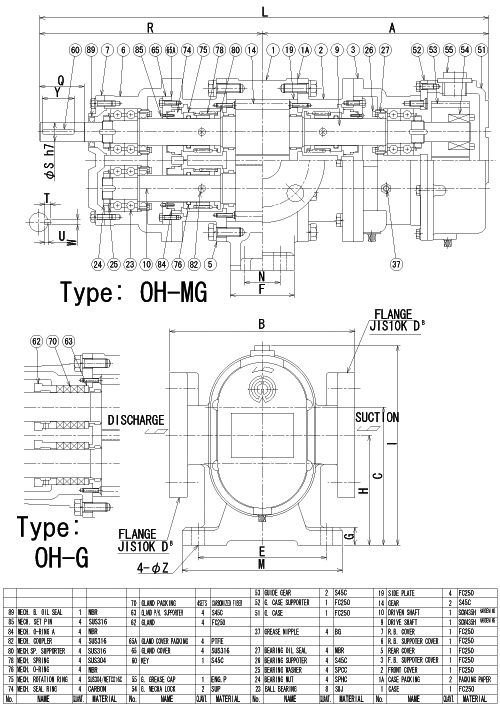

■ Structural drawing (OH type)  See PDF

Structural drawing (OH type)

▲to top of page

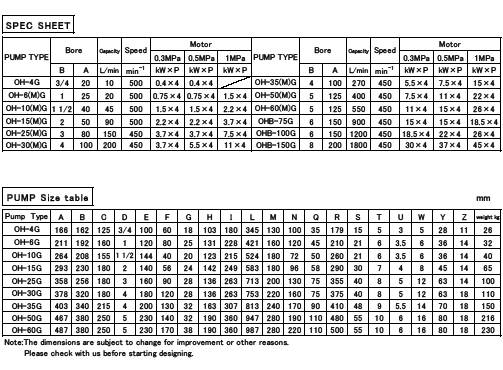

■ Specifications (OH type)  See PDF

Specifications (OH type)
