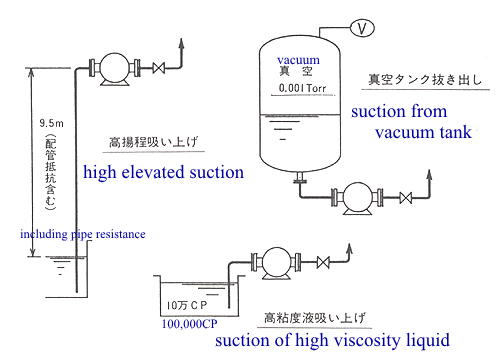

１．Suction Capacity 〔ＭＡＸ　− 9.7ｍ〕
２．Suction Pressure 〔ＭＡＸ　5.0Mpa〕
３．Discharge Pressure 〔ＭＡＸ　10.0Mpa〕
４．Fluid Viscosity 〔0.3mPa.S〜100 Million mPa.S〕
５．Discharge Capacity 〔２０�t/min〜4000Ｌ/min〕
６．Fluid Temperature 〔-50℃〜+400℃〕
７．Pump Material 〔FC、FCD,SC,SUS,ALBC、etc〕
８．We can tailor our pumps to meet any request
�@Seal Shaft Please consult with us if you have any problem with gland seals of your pumps
	Gland Packing Type Available for all fluids, from low viscosity to high viscosity
Single Mechanical Seal Type for Outside Model ＫＭ Series for Chemicals, Phermaceuticals, Food etc 　 Single Mechanical Seal Type for Inside Model Ｍ Series for Oil, low viscosity fluid 　 Double Bellows Mechanical Seal Type TV2 Series for vacuum suction of liquid, solid air, heating liquid, resin, varnish polymer etc 　 Double Mechanical Seal Type Ｍ２ Series for vacuum suction of liquid, solid air, resin, varnish polymer etc 　 Oil Seal Type （ＮＢＲ、ＦＫＭ） Ｓ Series for low viscosity oil, fluid 　 　 Teflon Oil Seal Type Ｓ２ Series for solvent, varnish, resin
�ASafety valve 　　　　　　inside type 　　　　　　outside , assembled with pipe, separated
�B Pump Jacket
Case 　　　　　Seal Shaft 　　　　　 All Body

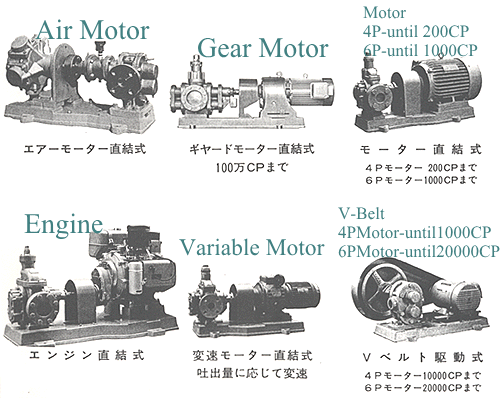

９． For any Driving Source

---
